Description

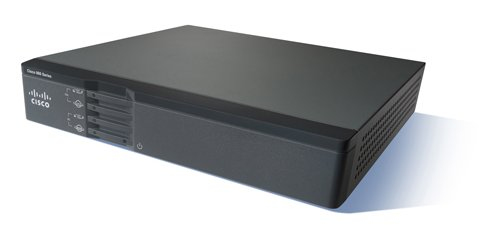

The new Cisco® 860VAE Series Integrated Services Routers (ISRs) are part of the Cisco Integrated Services Routers Generation 2 (ISR G2) portfolio. Cisco 860VAE routers support Gigabit Ethernet (GE) or very-high-speed DSL 2/asymmetric DSL2+ (VDSL2/ADSL2+) on a single, fixed ISR. The Cisco 860VAE Series can provide cost-effective basic or secure wired or wireless connectivity for a casual or enterprise teleworker as well as serve as managed customer premises equipment (CPE) for service providers. Cisco 860VAE Series ISRs are entry-level, fixed-configuration routers that serve a range of business needs from providing basic connectivity for the casual teleworker to providing secure collaboration for the enterprise teleworker. For service providers, the Cisco 860VAE ISRs present an opportunity for tiered basic or secure managed CPE devices. With multiple WAN technologies offered within a single box (GE, ADSL2+, or VDSL2), the Cisco 860VAE, which shares a common architecture across its variants, allows for consistent management across various deployment scenarios. The Cisco 860VAE ISRs that come in a compact fanless desktop form factor provide improved performance, state-of-the-art xDSL features, and significantly better interoperability over the older Cisco 860 Series ISRs.
Specifications
| Ethernet LAN features |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN |
Yes |
| Memory |
| Flash memory |
128 MB |
| Internal memory |
512 MB |
| Performance |
| Storage media |
Flash |
| Internal memory type |
DRAM |
| Flash memory |
128 MB |
| Internal memory |
512 MB |
| WAN connection |
| Ethernet WAN |
Yes |
| SIM card slot |
No |
| 3G/4G USB modem compatibility |
No |
| Network |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN |
Yes |
| Multicast support |
Yes |
| Policy-based routing |
Yes |
| Ethernet interface type |
Gigabit Ethernet |
| DSL features |
| ADSL2+ |
Yes |
| VDSL2 |
Yes |
| Management features |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Ports & interfaces |
| Gigabit Ethernet (copper) ports quantity |
2 |
| USB ports quantity |
1 |
| USB version |
2.0 |
| Ethernet LAN (RJ-45) ports |
4 |
| Protocols |
| DHCP server |
Yes |
| DHCP client |
Yes |
| Technical details |
| Rack mounting |
Yes |
| Product colour |
Black |
| Policy-based routing |
Yes |
| Security |
| Firewall |
Yes |
| Security algorithms |
SNMP,SSH |
| MAC address filtering |
Yes |
| Access Control List (ACL) |
Yes |
| Features |
| Storage media |
Flash |
| Internal memory type |
DRAM |
| Flash memory |
128 MB |
| Internal memory |
512 MB |
| Design |
| Rack mounting |
Yes |
| Product colour |
Black |
| Rack capacity |
1U |
| Power |
| Power source type |
AC |
| Output voltage |
12 V |
| AC input voltage |
100 – 240 V |
| AC input frequency |
50 – 60 Hz |
| Power consumption (typical) |
60 W |
| Operational conditions |
| Operating temperature (T-T) |
0 – 40 °C |
| Storage temperature (T-T) |
-20 – 65 °C |
| Operating relative humidity (H-H) |
10 – 85% |
| Storage relative humidity (H-H) |
5 – 95% |
| Operating altitude |
0 – 3000 m |
| Non-operating altitude |
0 – 4570 m |
| Weight & dimensions |
| Width |
241 mm |
| Depth |
229 mm |
| Height |
44.5 mm |
| Weight |
2.5 kg |
